Home Assistant Green Smart Home Hub 2X USB Gigabit LAN opt. Sonoff Zigbee Dongle

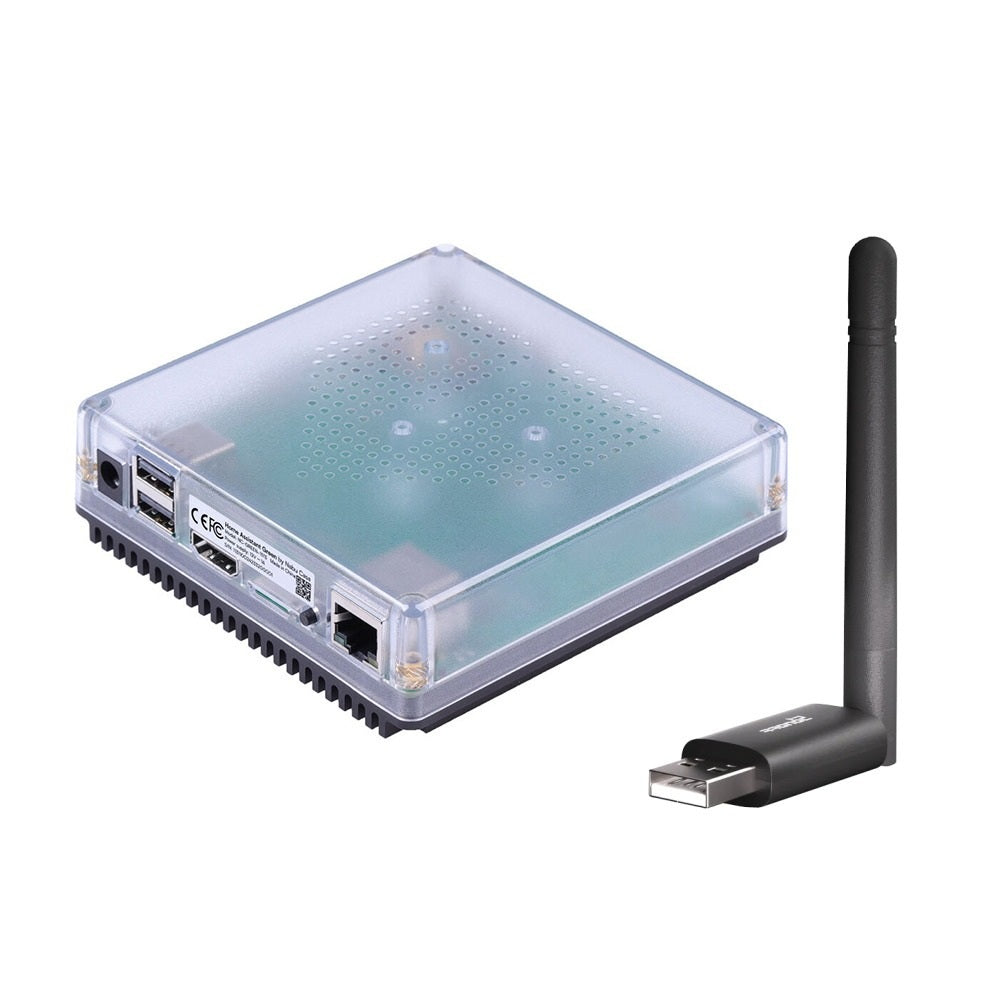

Set Overview

Home Assistant Green provides the smart home hub. The optional SONOFF Dongle Lite MG21 adds a USB Zigbee coordinator. Each device has its own description, features, technical specifications and list of included accessories below.

Each contents list applies to the named device. The selected offer variant determines which devices you receive.

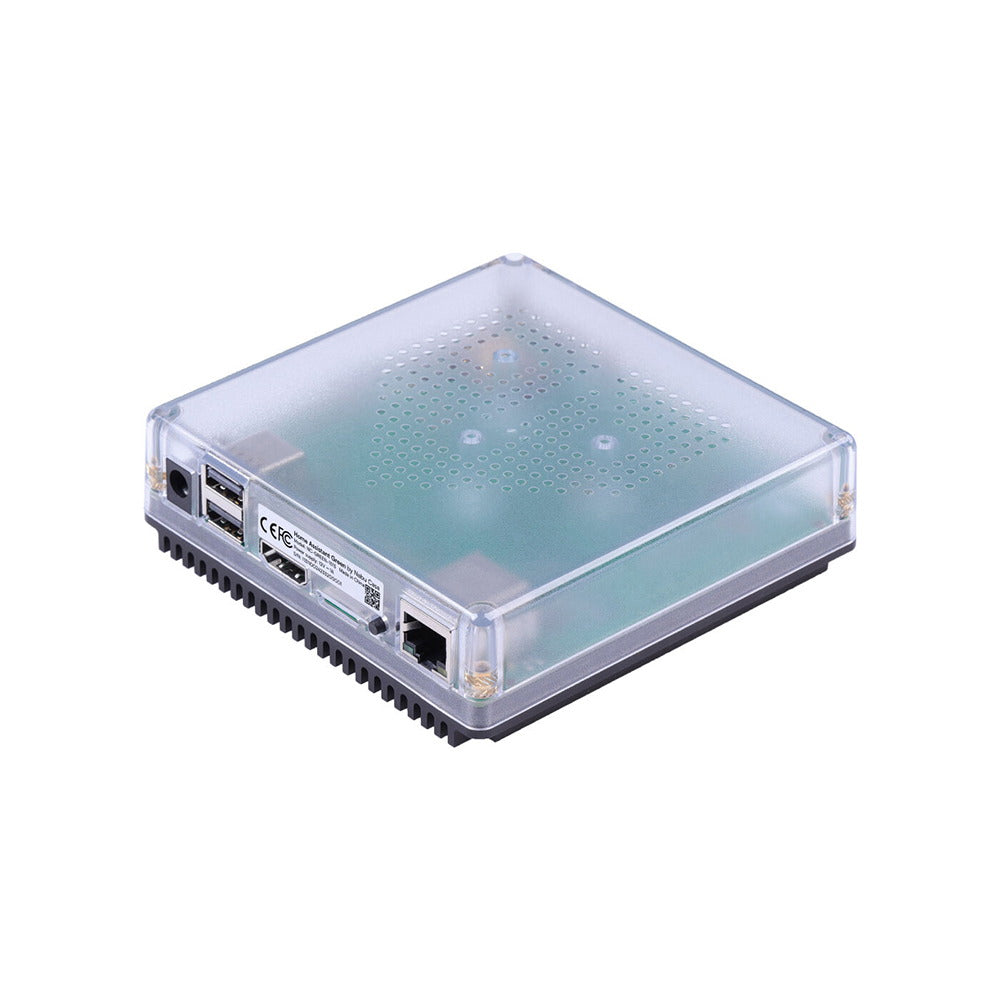

Product Description - Home Assistant Green

EASY START — The cost-effective Home Assistant Green is the easiest way to use Home Assistant. It is easy to set up and comes pre-installed with Home Assistant.

EASY SETUP — Just plug it in and get started. Begin immediately.

Features - Home Assistant Green

COMPATIBLE WITH (ALMOST) EVERYTHING: Powerful hardware allows you to control and automate everything in your home from a single app with Home Assistant.

INTEGRATED: Everything in one app. Over 1,000 built-in integrations support hundreds of thousands of smart devices and online services, with more constantly added by our community.

EASY MIGRATION: Switch at your own pace from other smart home systems. Home Assistant works with your existing Apple HomeKit, Google Home*, Samsung SmartThings** and Amazon Alexa* setup, allowing for seamless and gradual migration for everything in your home. * A Home Assistant Cloud subscription is recommended for smooth integration with Google Home and Amazon Alexa voice assistants. ** A Home Assistant Cloud subscription is recommended for using webhooks with Samsung SmartThings.

EXPANDABLE: Expand compatibility as your home grows. You can add Home Assistant SkyConnect to connect Zigbee and Thread* devices, set up Home Assistant Cloud for voice assistants, and integrate third-party USB accessories to support other smart standards like Z-Wave or Bluetooth. * Thread support is currently in development.

RELIABLE: Your home is built for longevity, and your smart home should be too. With Home Assistant, your smart home is private, truly owned, and under your control.

IMPROVING EVERY MONTH: Home Assistant is developed by one of the largest communities of open-source contributors. New features and improvements are added every month to ensure your smart home never lets you down.

YOUR DATA IS PRIVATE AND LOCAL: Home Assistant stores your data locally, meaning you are protected from data privacy practices and can access your smart home even if the internet is down.

Technical Specifications - Home Assistant Green

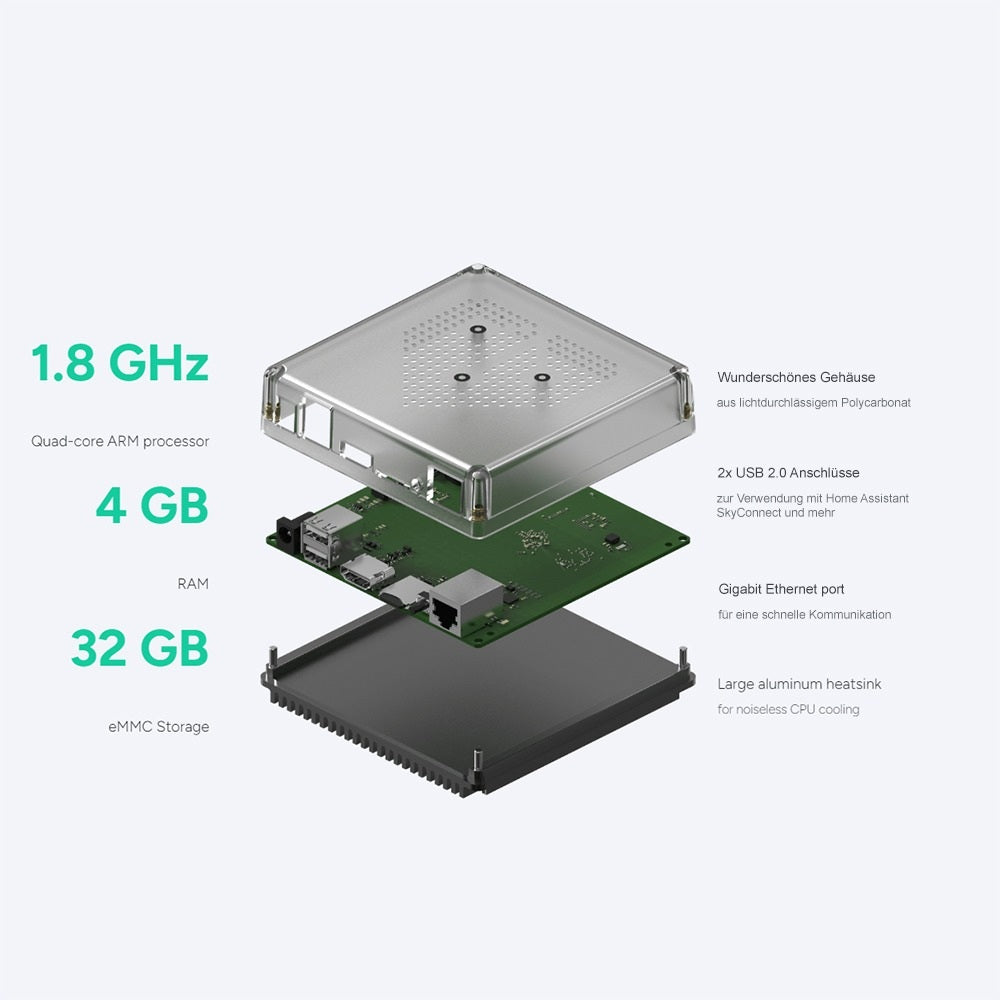

Hardware Specifications

SoC: Rockchip RK3566 SoC with Quad-Core Arm Cortex-A55 CPU

CPU Frequency: 1.8 GHz

Storage: 32 GB eMMC flash drive

RAM: 4 GB LPDDR4X

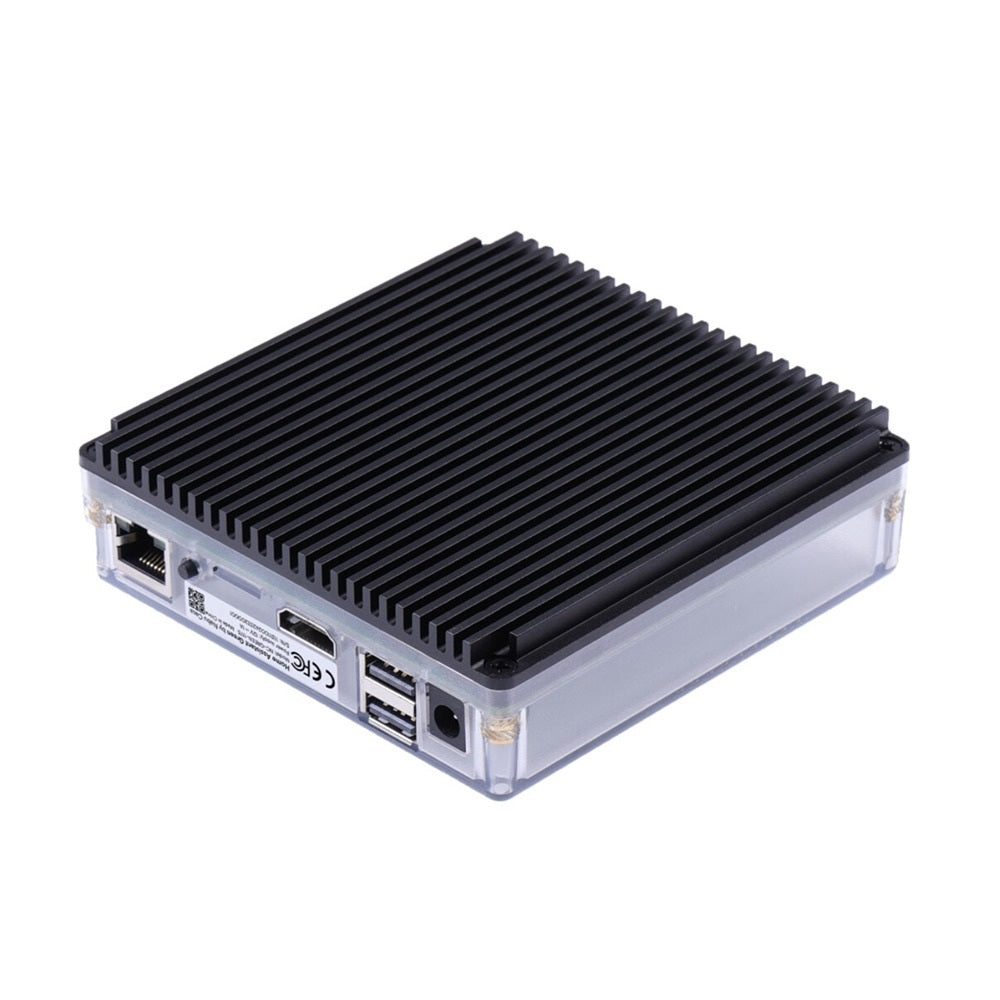

Interfaces

Status LEDs: White (Power Indicator), Green (Activity Indicator), Yellow (System Status Indicator)

Power Supply: DC barrel jack, 5.5 mm * 2.1 mm / 12 V DC, 1 A

Battery: CR2032. Not included. Optional.

Power Consumption Idle: ~1.7 W at 12 V

Power Consumption Load: ~3 W at 12 V

USB: 2x USB 2.0 Type-A host ports, 5 V up to 2 A (combined)

Display: HDMI port, for diagnostic purposes only

External Storage: MicroSD slot, for recovery purposes only

Network: Gigabit Ethernet port

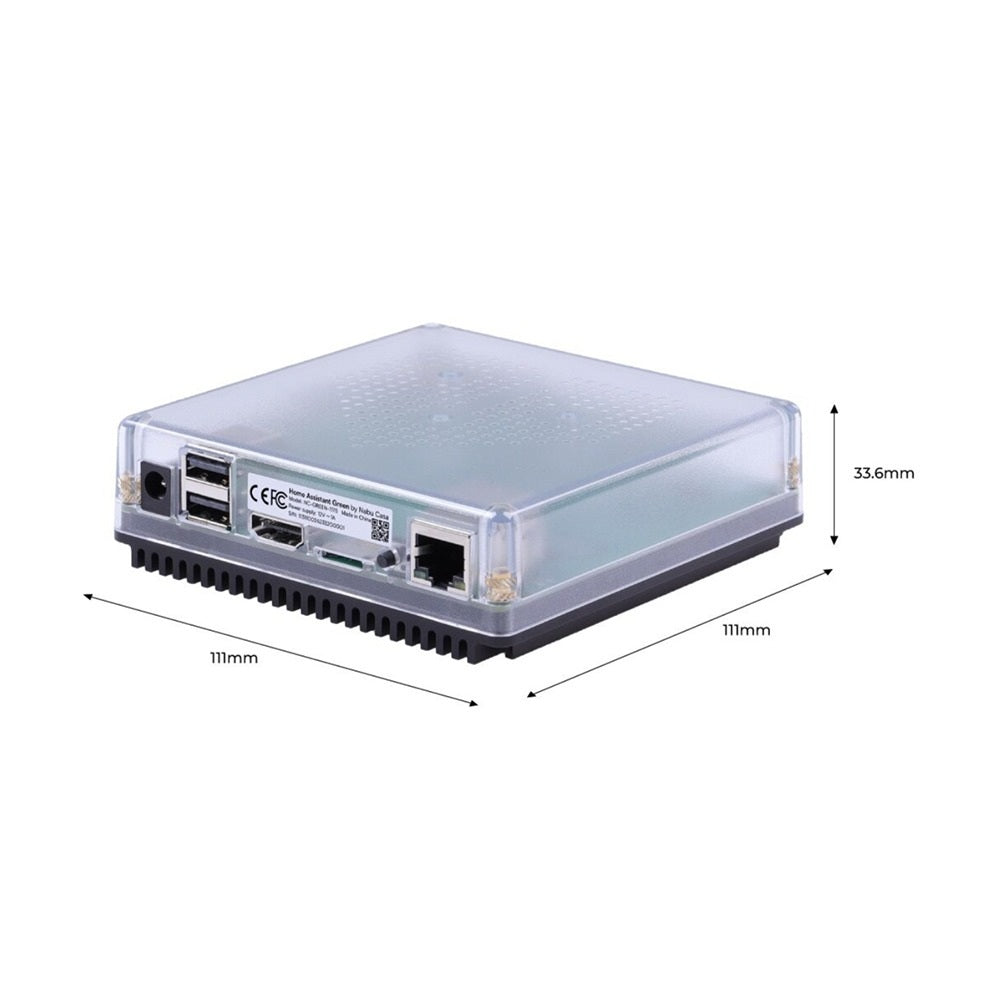

Dimensions and Weight

Length: 112 mm / 4.41 inches

Width: 112 mm / 4.41 inches

Height: 32 mm / 1.26 inches

Weight: 340 g / 12 oz

Materials

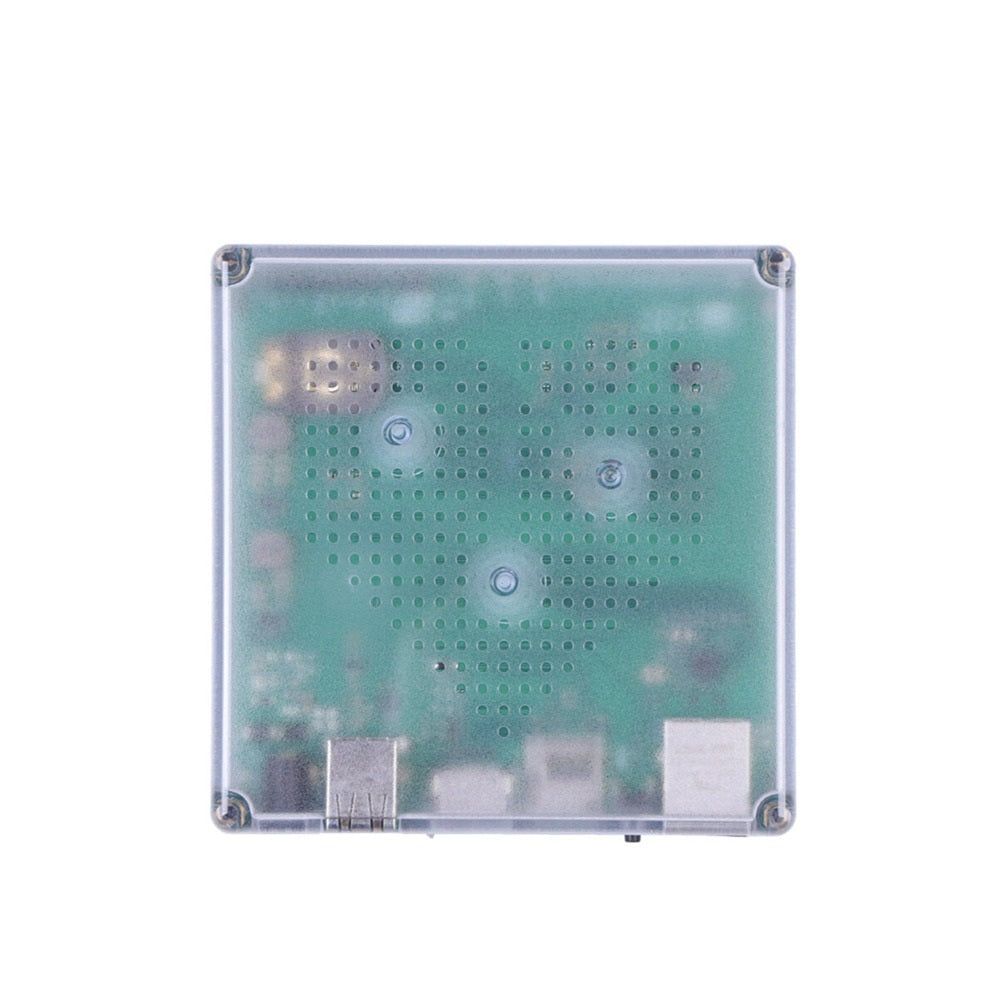

Housing: Semi-transparent polycarbonate plastic

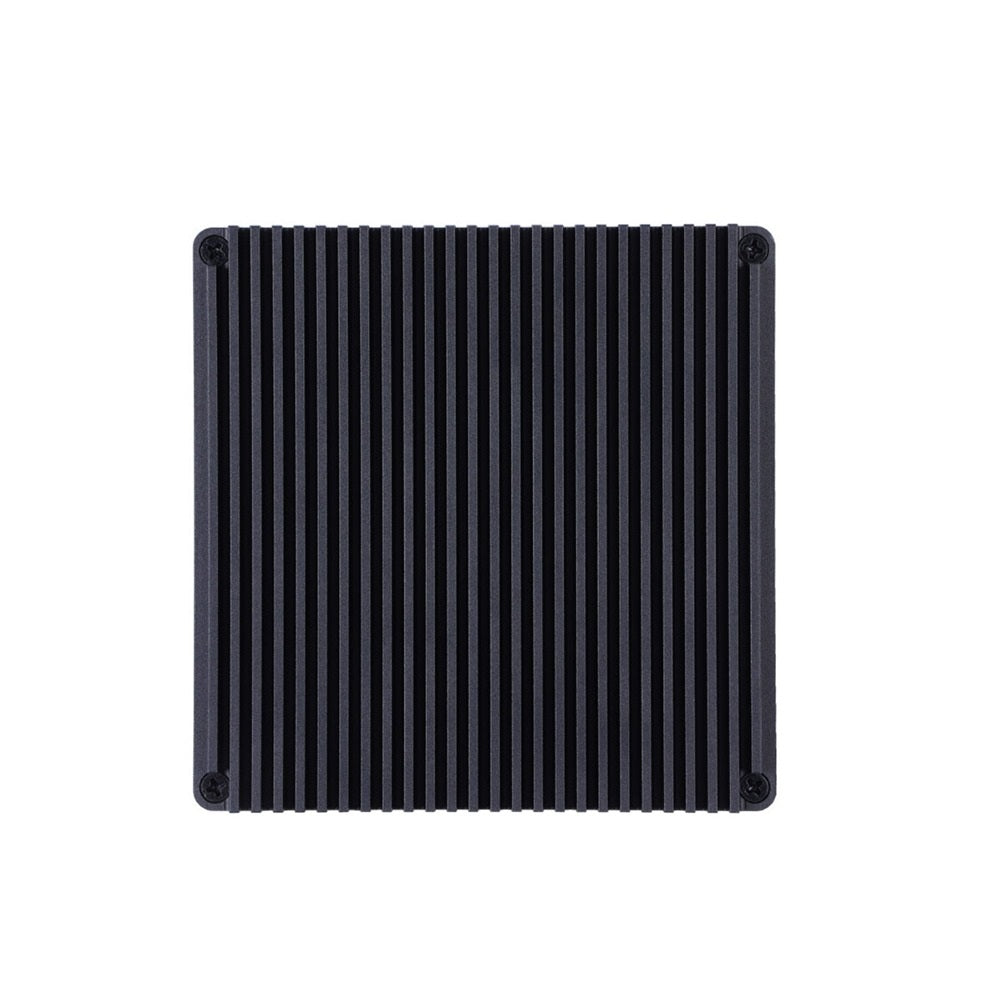

Heat Sink: Anodized aluminum

Packaging: Cardboard

Operating Environmental Conditions

Temperature: 0 °C to 40 °C / 32 °F to 104 °F

Humidity: Non-condensing

Room Conditions: For indoor use only, in a dry environment without excessive dust, as this may damage the device.

Product Information

Model No.: NC-GREEN-9703

Origin: Made in China

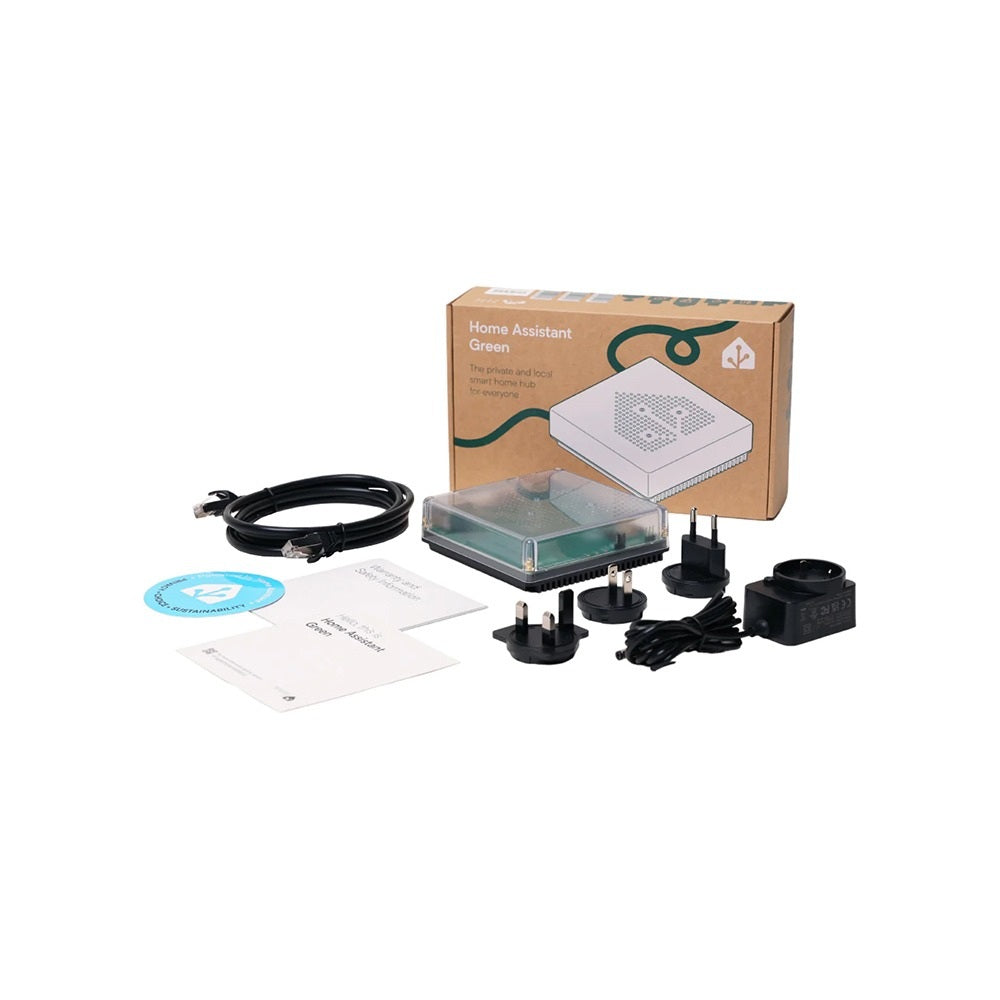

Included with Home Assistant Green

Home Assistant Green Smart Home Hub

1x Gigabit Ethernet cable

Universal power supply, 12 V DC, 1 A, with plug adapters for EU, USA, and UK

Quick Start Guide

Warranty and Safety Information

Datasheets - Home Assistant Green

Quickstart Guide DE/EN

Warranty & Safety Information

Datasheet

Declaration of Conformity

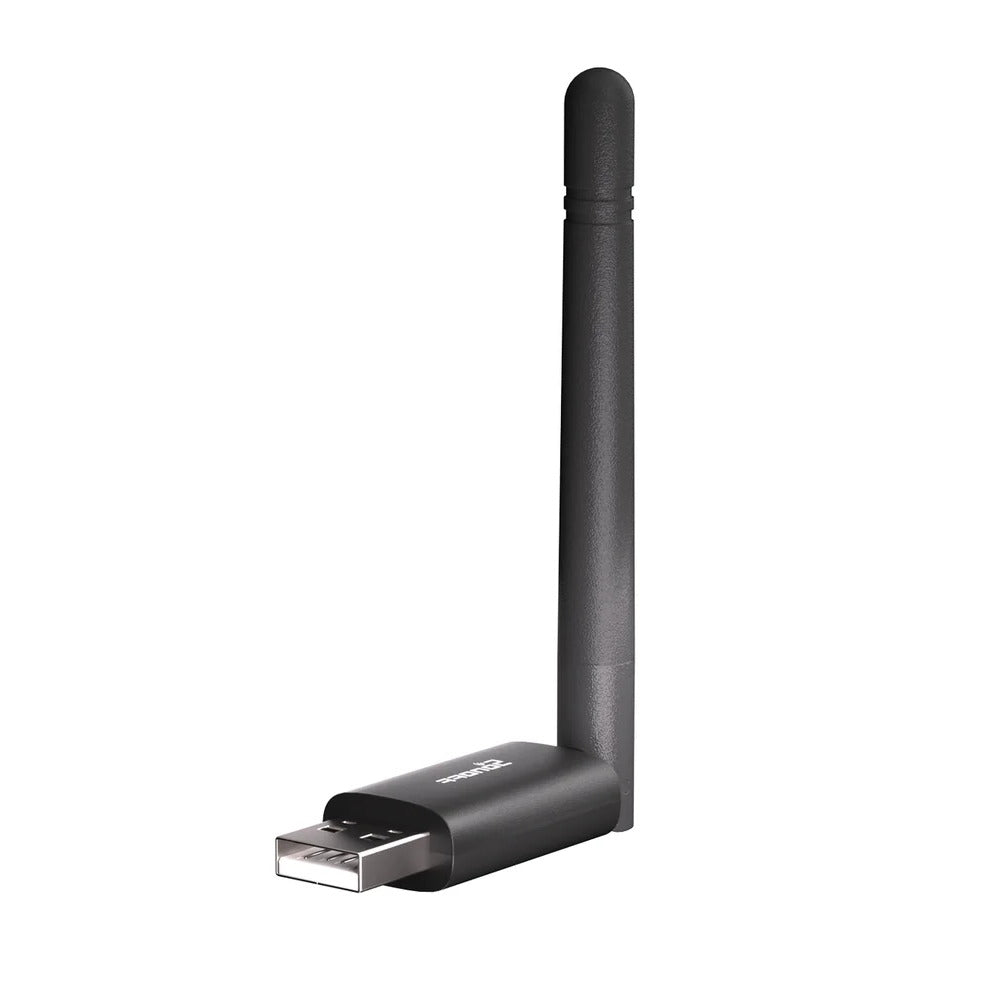

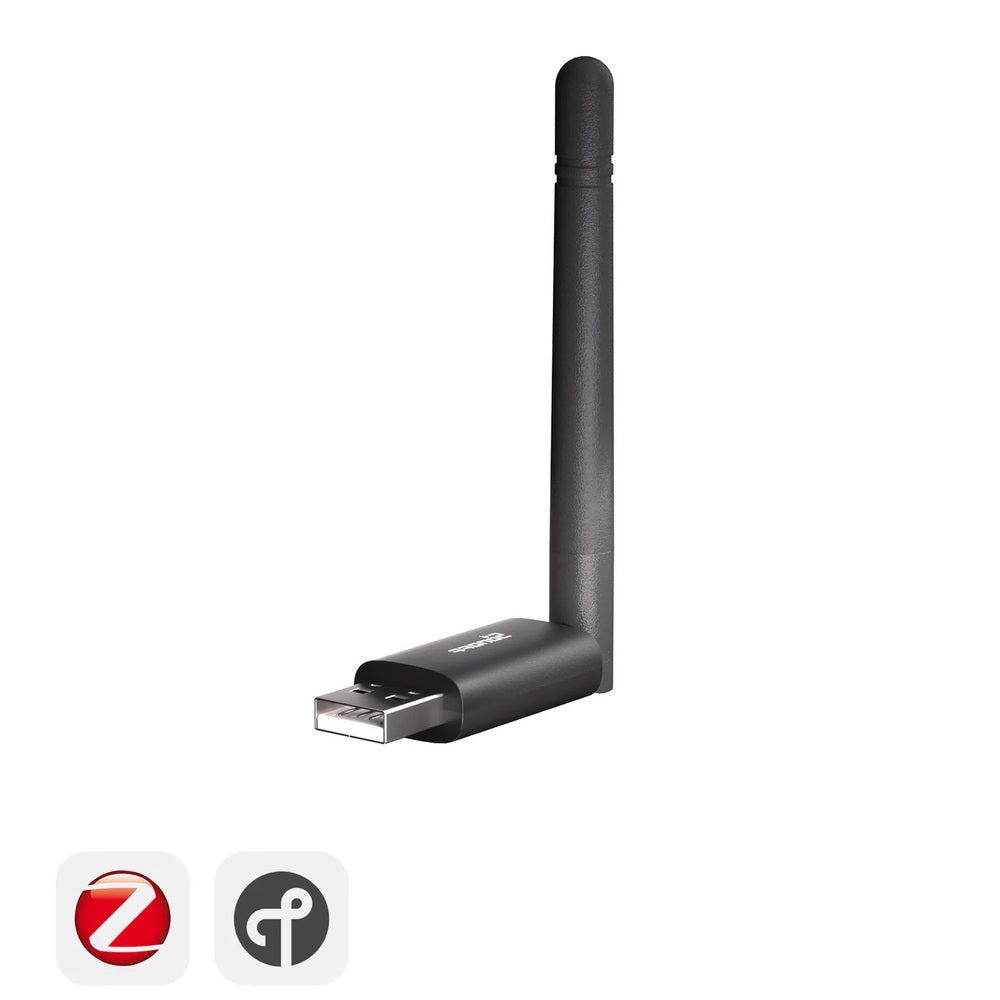

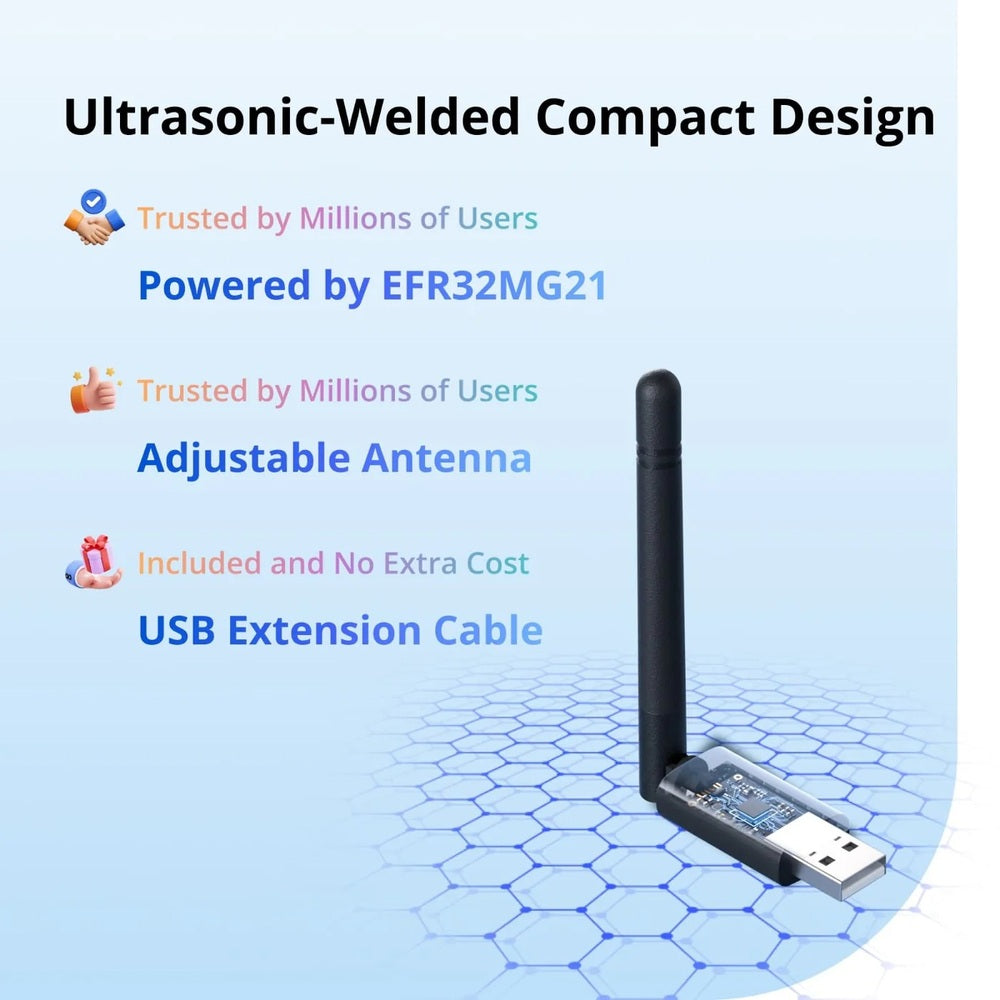

Product Description - SONOFF Dongle Lite MG21

The SONOFF Dongle Lite MG21 is a compact Zigbee 3.0 USB coordinator based on the proven and energy-efficient EFR32MG21 radio chip. It provides stable, fast, and reliable radio communication for smart home platforms like Home Assistant (ZHA), Zigbee2MQTT, openHAB, ioBroker, Domoticz, and Jeedom. The dongle is ideal for building a local Zigbee network, integrating devices from different brands, and controlling them centrally – completely without the cloud.

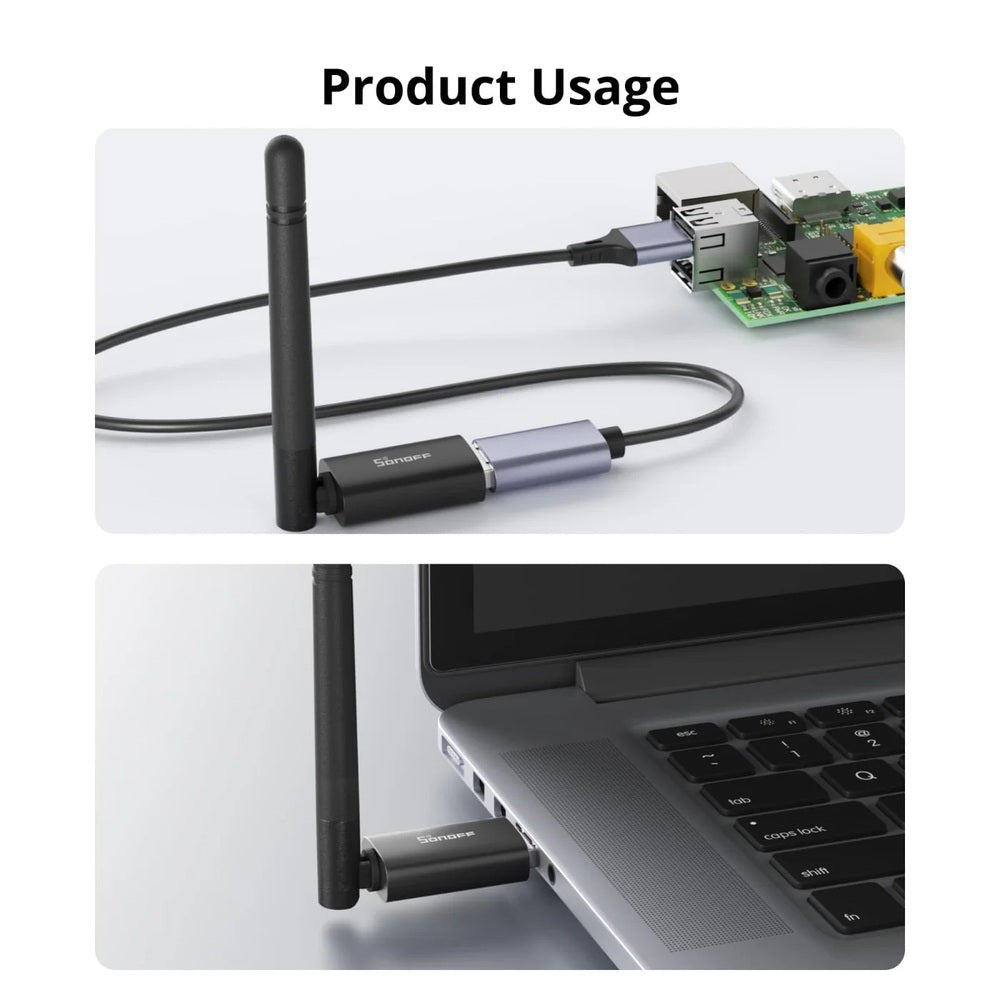

Thanks to its sleek design, the MG21 can easily be plugged into various USB ports or positioned without interference using the included 0.5 m USB extension cable. The adjustable external antenna offers flexible alignment options and achieves a stable range of up to 140 meters in open areas. The extended antenna design also reduces interference from neighboring USB 3.0 ports and peripherals.

The dongle comes with pre-installed EmberZNet firmware and supports the quick addition of numerous Zigbee devices. It can alternatively be used as a Zigbee router to extend the range of the mesh network and improve radio stability. For advanced users, the MG21 offers additional firmware options such as Zigbee NCP, Zigbee Router, OpenThread RCP, or MultiPAN. This allows it to be used in combination with a Thread Border Router for Matter-over-Thread devices, enabling the connection and management of Zigbee and Thread devices with just one device.

The dongle is ready to use immediately and works on Windows, Ubuntu, Raspberry Pi OS, and in Docker environments in plug-and-play mode. For those who need more control, comfortable firmware flashing is possible via the SONOFF Dongle Flasher Tool.

Features - SONOFF Dongle Lite MG21

Proven EFR32MG21 Chip – Proven Zigbee chip used in millions of installations ensuring reliable and stable radio performance.

Compact Size – About 65% smaller than the classic ZBDongle-E, making it particularly flexible in tight USB ports or behind devices.

Wide Platform Compatibility – Seamlessly works with popular open-source platforms like Home Assistant, Zigbee2MQTT, and openHAB for central control of various Zigbee devices.

Easy Firmware Flashing – Supports comfortable firmware flashing via the SONOFF Dongle Flasher Tool, allowing easy switching between different firmware variants and operating modes.

Includes USB Extension Cable – The included USB extension cable allows flexible positioning of the dongle and reduces interference from USB 3.0 ports.

Zigbee 3.0 USB Gateway – Use the dongle as a full Zigbee 3.0 gateway to locally connect and control various Zigbee devices from different brands.

High Output Power +20 dBm – Increased transmission power ensures a stable connection and extended range in the Zigbee mesh network.

Robust Aluminum Housing – Aluminum alloy housing effectively reduces electromagnetic interference from peripherals and improves signal quality.

External SMA Antenna – Adjustable external antenna that can be optimally aligned to maximize reception and radio coverage at the desired position.

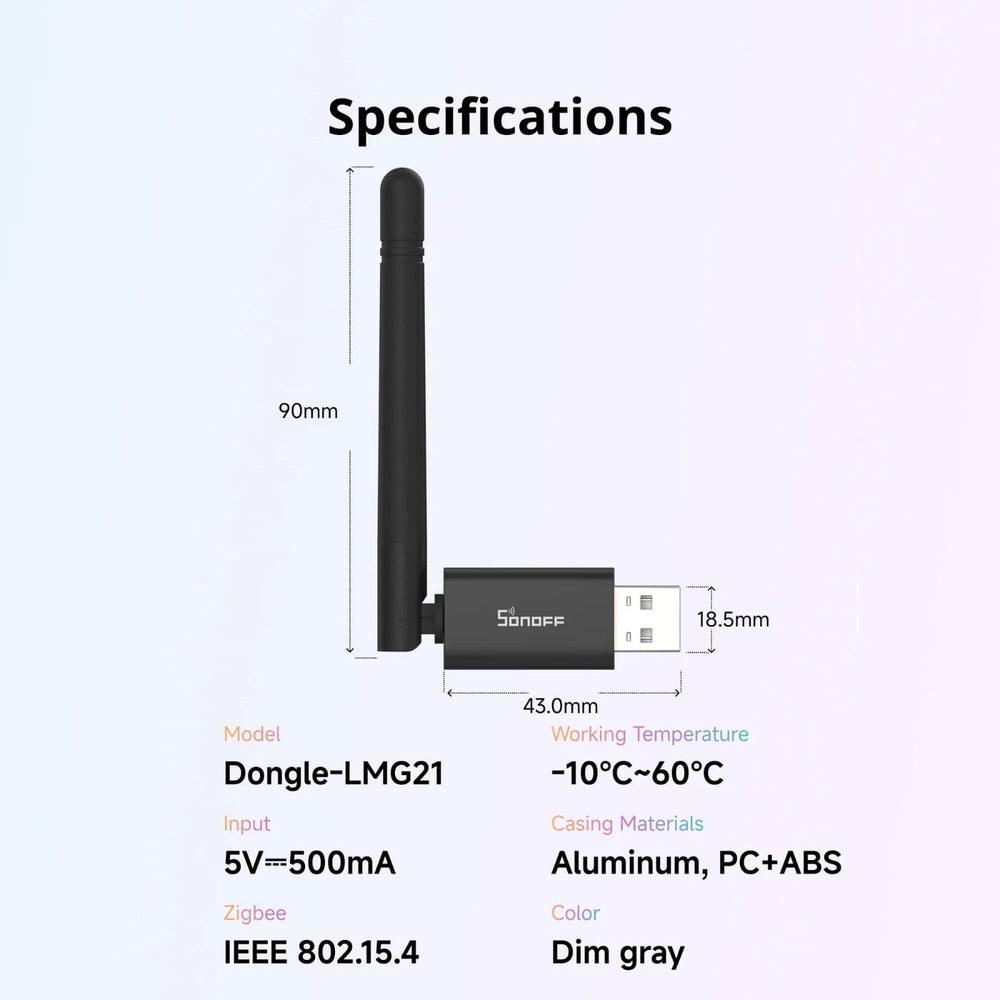

Technical Specifications - SONOFF Dongle Lite MG21

Model: SONOFF Dongle-LMG21 (Dongle Lite MG21)

Radio Chip (SoC): Silicon Labs EFR32MG21

Protocols: Zigbee 3.0 (IEEE 802.15.4)

Optional Protocols via Firmware: Zigbee NCP / Zigbee Router / OpenThread RCP / MultiPAN (Thread)

Compatible Platforms: Home Assistant (ZHA), Zigbee2MQTT, openHAB, ioBroker, Domoticz, Jeedom

Operating Systems: Windows, Ubuntu, Raspberry Pi OS, Docker

Input Voltage: 5 V DC / 500 mA

Range: up to 140 m (open environment, depending on surroundings & antenna position)

Antenna: external, adjustable SMA antenna (≤180°)

Housing Material: Aluminum, PC+ABS

Color: Dove Gray

Dimensions: 133 × 18.6 × 10.1 mm

Operating Temperature: –10 °C to +60 °C

Humidity: 5–95 % RH (non-condensing)

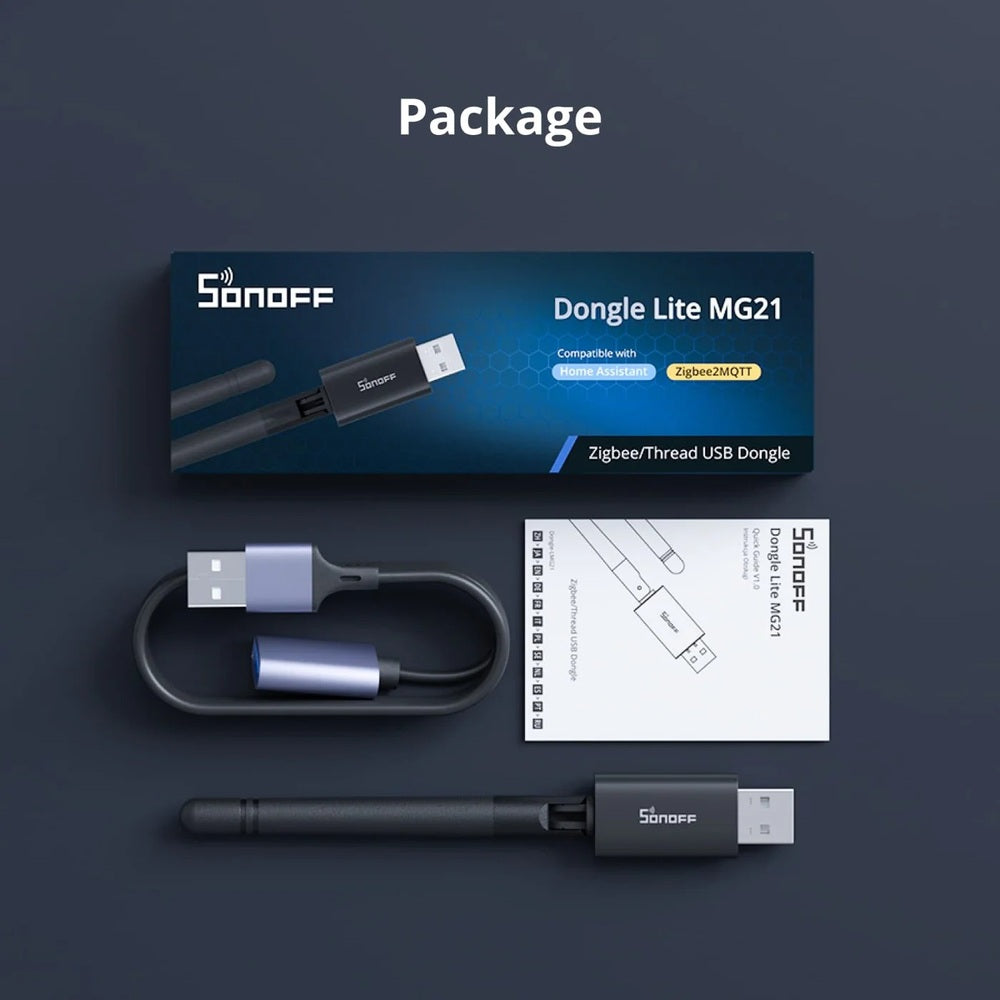

Included with SONOFF Dongle Lite MG21

SONOFF Dongle-LMG21

Adjustable SMA antenna

0.5 m USB extension cable
