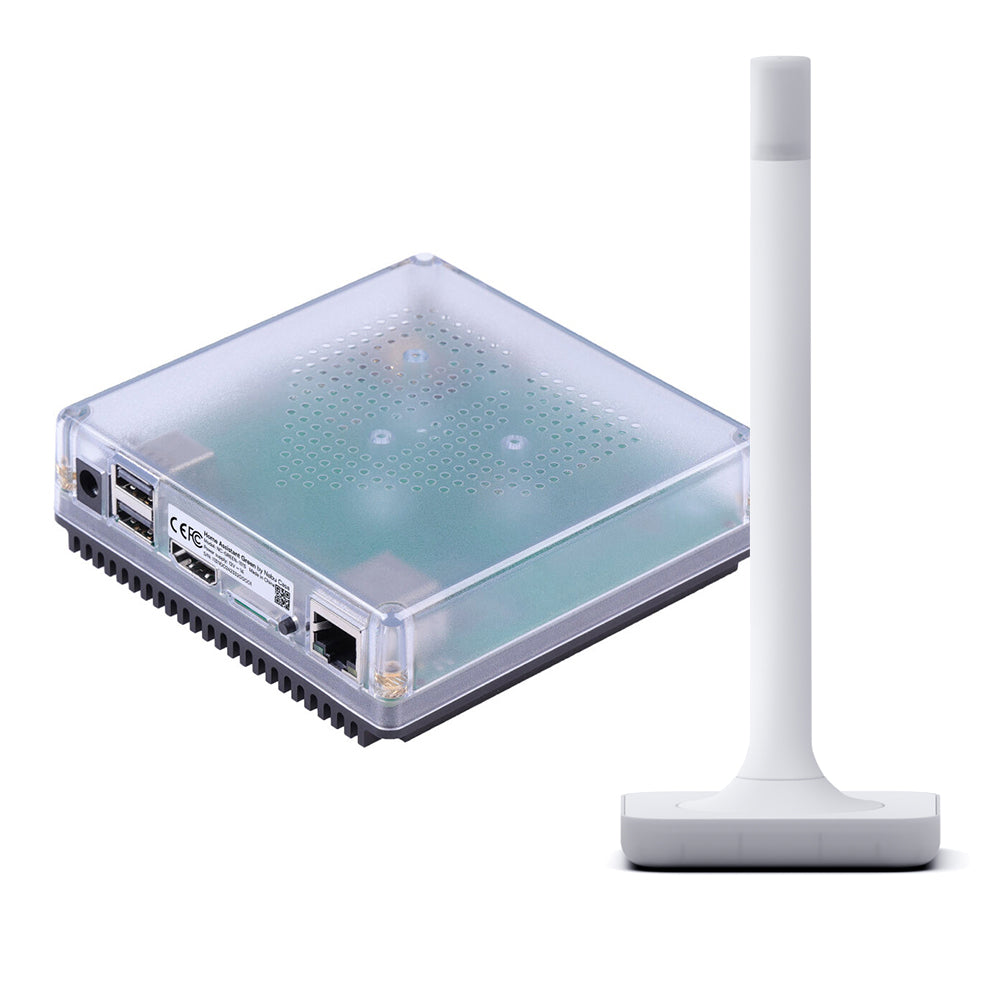

Home Assistant Green Smart Home Hub 2X USB, Gigabit LAN - opt. Connect ZWA-2

Green - Home Assistant Smart Home Hub

EASY START — The affordable Home Assistant Green is the easiest way to use Home Assistant. It is easy to set up and comes pre-installed with Home Assistant.

EASY SETUP — Just plug it in and get started. Begin immediately.

COMPATIBLE WITH (ALMOST) EVERYTHING — Powerful hardware allows you to control and automate everything in your home from a single app with Home Assistant.

INTEGRATED — Everything in one app. Over 1,000 built-in integrations support hundreds of thousands of smart devices and online services, with more constantly added by our community.

EASY MIGRATION — Switch at your own pace from other smart home systems. Home Assistant works with your existing Apple HomeKit, Google Home*, Samsung SmartThings** and Amazon Alexa* setup, allowing for seamless and gradual migration for everyone in your home. * A Home Assistant Cloud subscription is recommended for smooth integration with Google Home and Amazon Alexa voice assistants. ** A Home Assistant Cloud subscription is recommended for using webhooks with Samsung SmartThings.

EXPANDABLE — Extend compatibility as your home grows. You can add Home Assistant SkyConnect to connect Zigbee and Thread* devices, set up Home Assistant Cloud for voice assistants, and integrate third-party USB accessories to support other smart standards like Z-Wave or Bluetooth. * Thread support is currently in development.

RELIABLE — Your home is designed for longevity, and your smart home should be too. With Home Assistant, your smart home is private, truly owned, and under your control.

IMPROVING EVERY MONTH — Home Assistant is developed by one of the largest communities of open-source contributors. New features and improvements are added every month to ensure your smart home never lets you down.

YOUR DATA IS PRIVATE AND LOCAL — Home Assistant stores your data locally, meaning you are protected from data privacy practices and can access your smart home even if the internet is down.

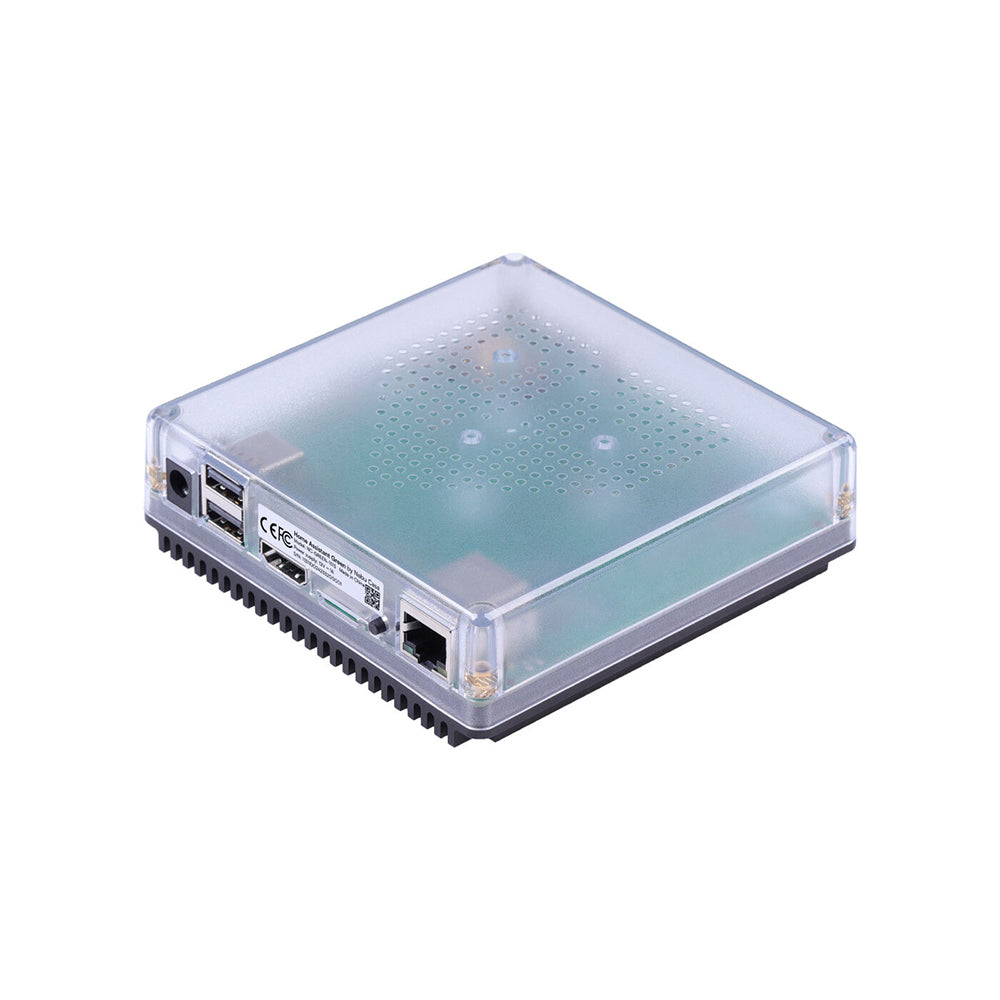

Green - Technical Specifications

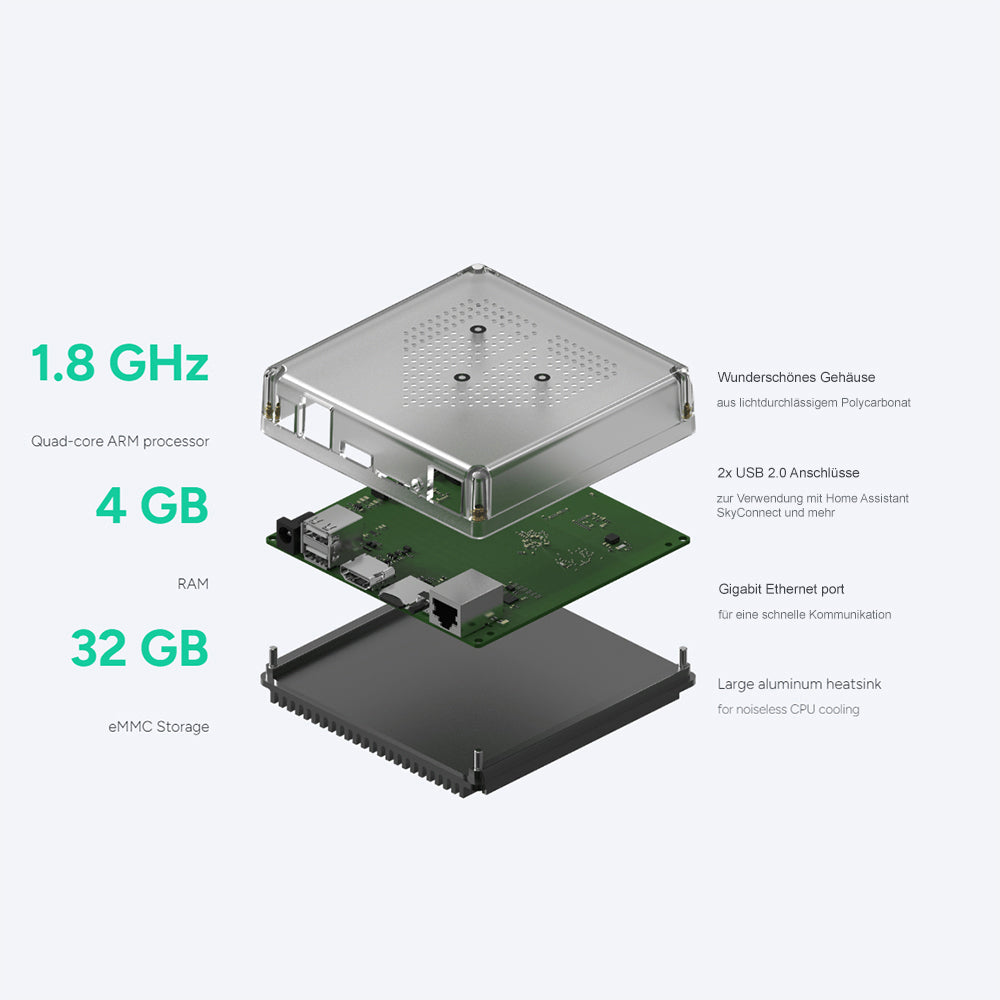

Hardware Specifications:

SoC: Rockchip RK3566 SoC with Quad-Core Arm Cortex-A55 CPU

CPU Frequency: 1.8 GHz

Storage: 32 GB eMMC flash drive

RAM: 4 GB LPDDR4X

Interfaces:

Status LEDs: White (Power Indicator), Green (Activity Indicator), Yellow (System Status Indicator)

Power Supply: DC barrel jack, 5.5 mm * 2.1 mm / 12 V DC, 1 A

Battery: CR2032. Not included. Optional.

Power Consumption Idle: ~1.7 W at 12 V

Power Consumption Load: ~3 W at 12 V

USB: 2x USB 2.0 Type-A host ports, 5 V up to 2 A (combined)

Display: HDMI port, for diagnostic purposes only

External Storage: MicroSD slot, for recovery purposes only

Network: Gigabit Ethernet port

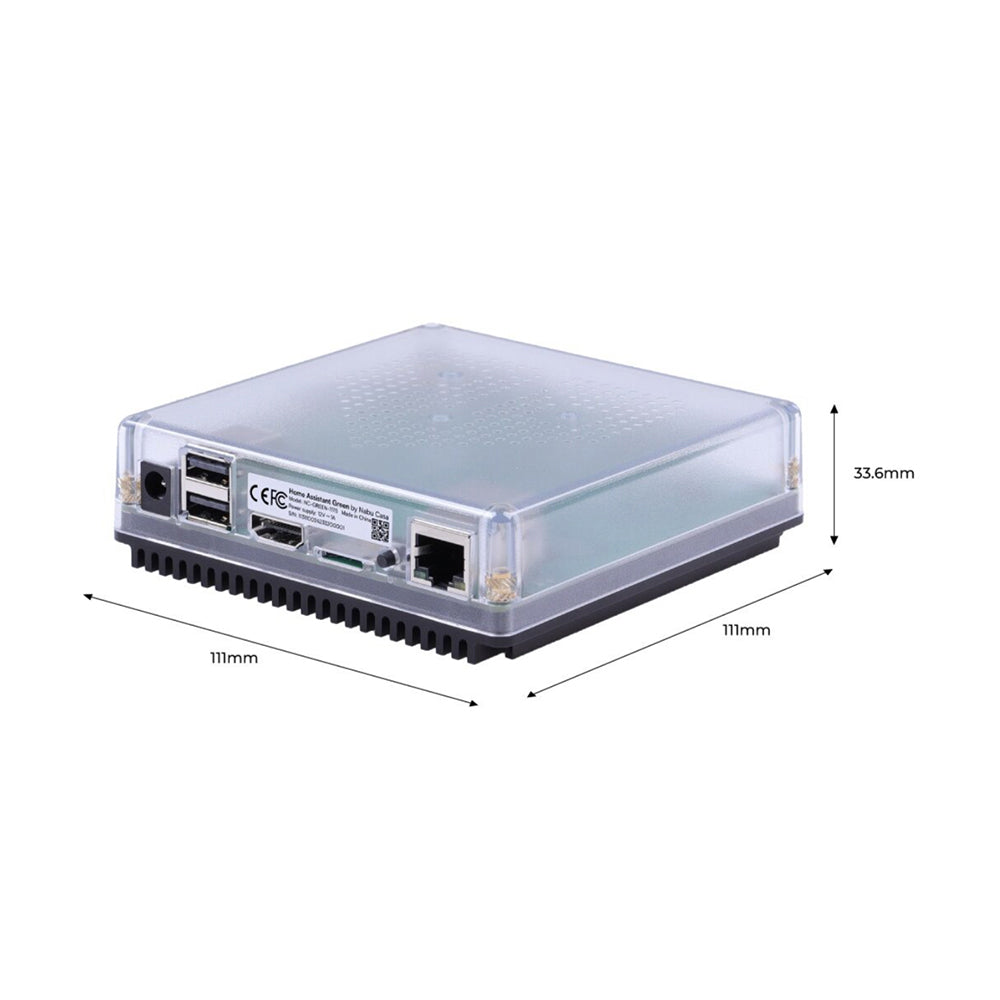

Dimensions and Weight:

Length: 112 mm / 4.41 inches

Width: 112 mm / 4.41 inches

Height: 32 mm / 1.26 inches

Weight: 340 g / 12 oz

Materials:

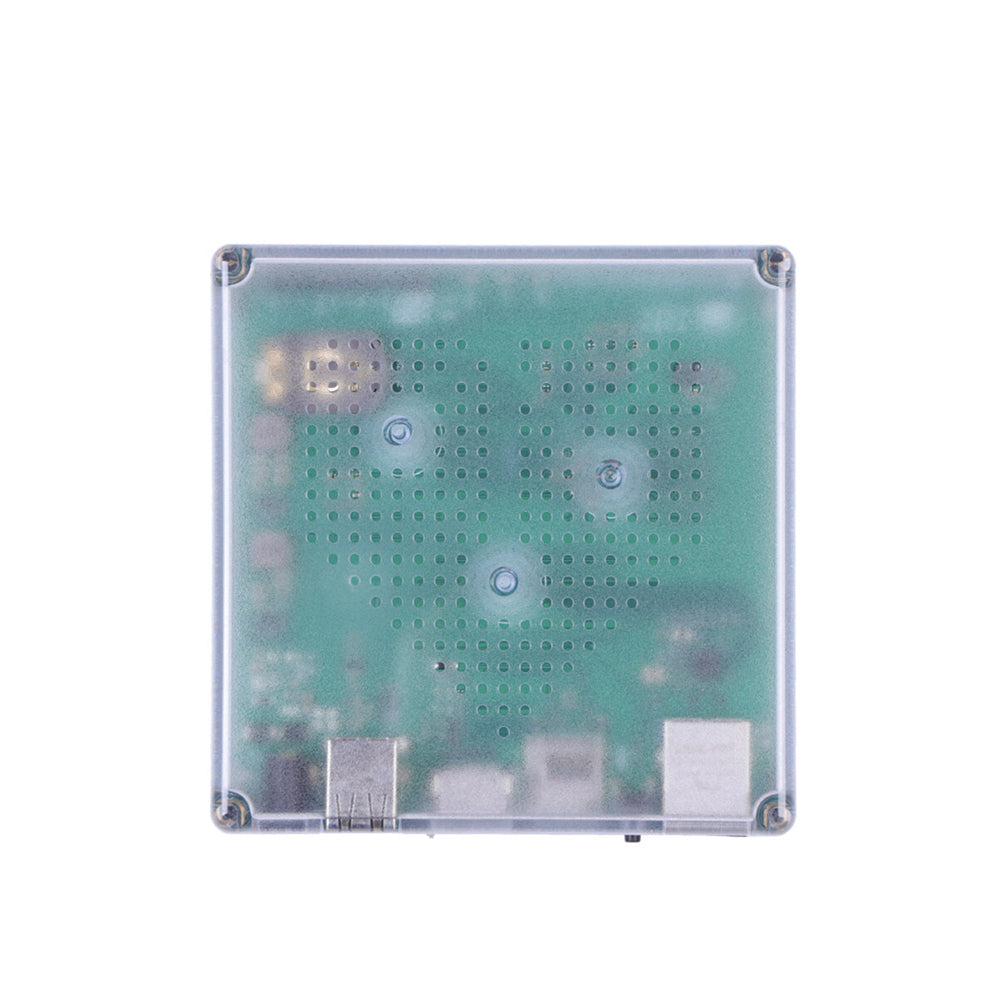

Housing: Semi-transparent polycarbonate plastic

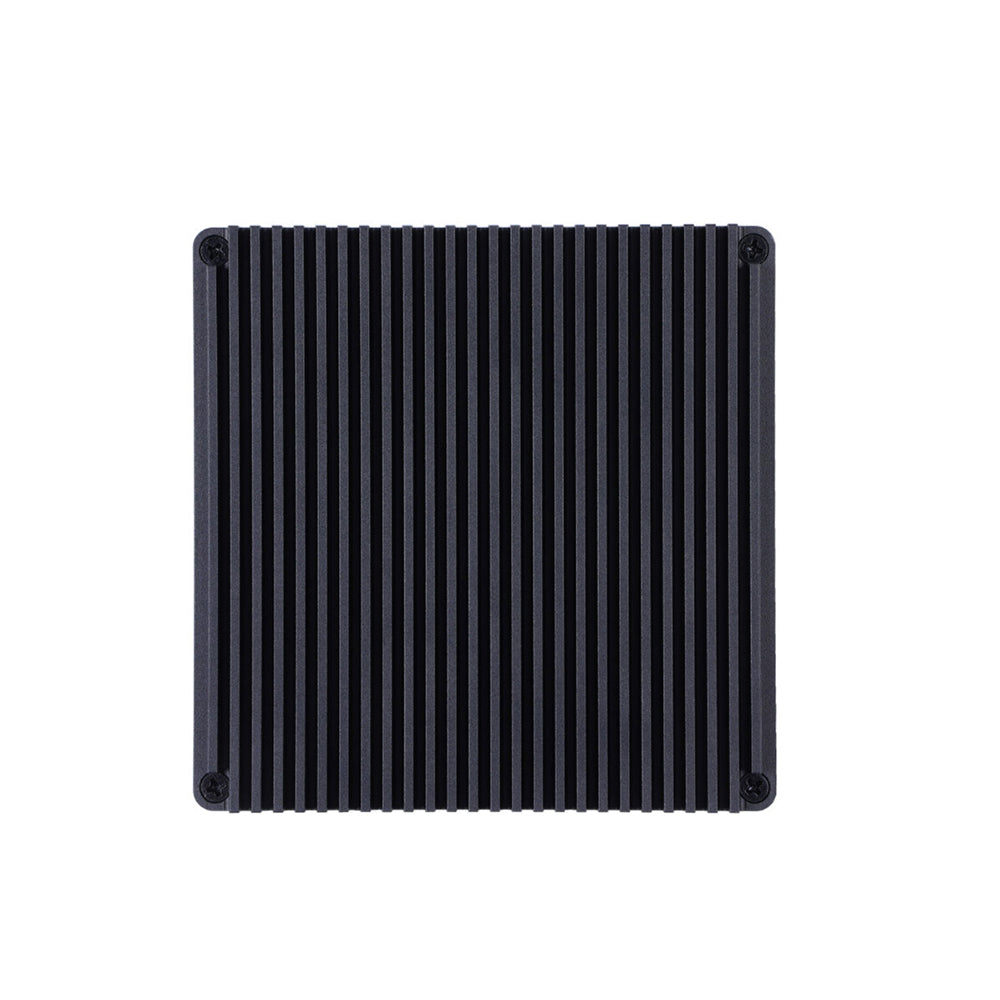

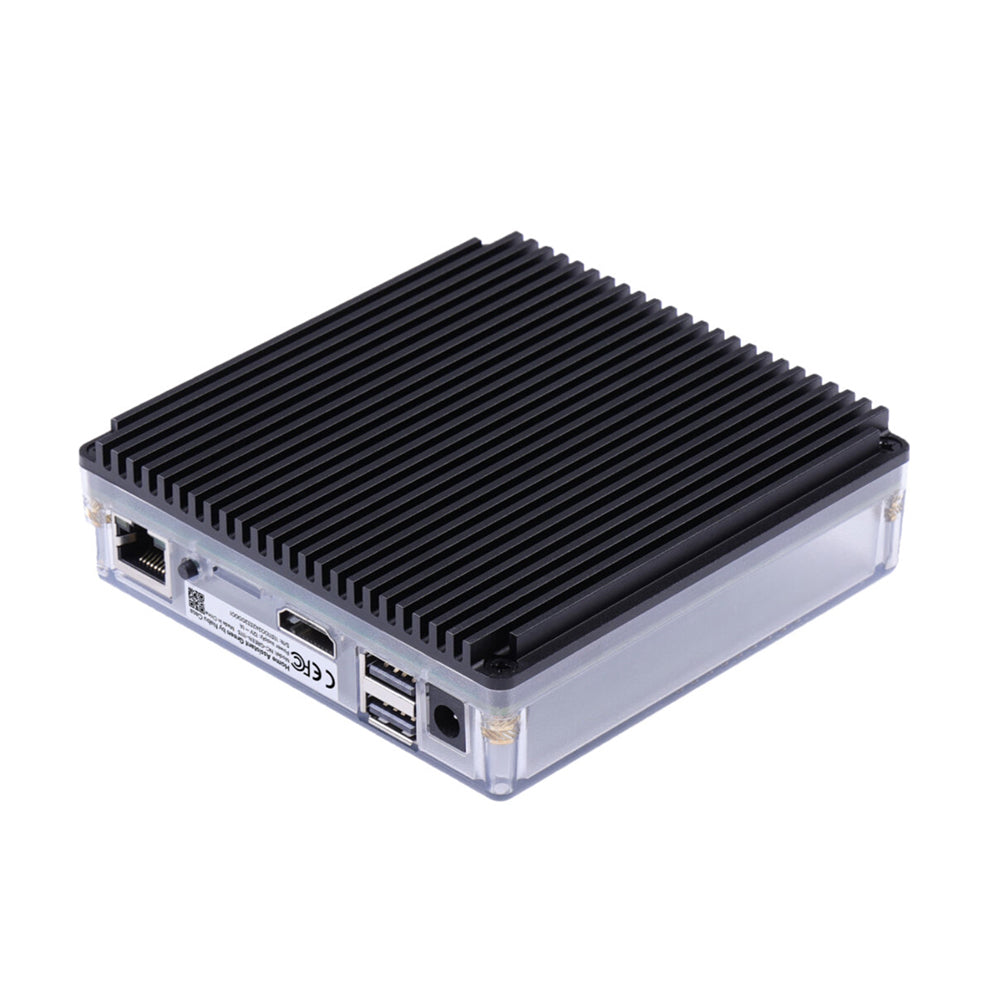

Heat Sink: Anodized aluminum

Packaging: Cardboard

Operating Environment Conditions:

Temperature: 0 °C to 40 °C / 32 °F to 104 °F

Humidity: Non-condensing

Room Conditions: For indoor use only, in a dry environment without excessive dust, as this may damage the device.

Product Information:

Model No.: NC-GREEN-9703

Origin: Made in China

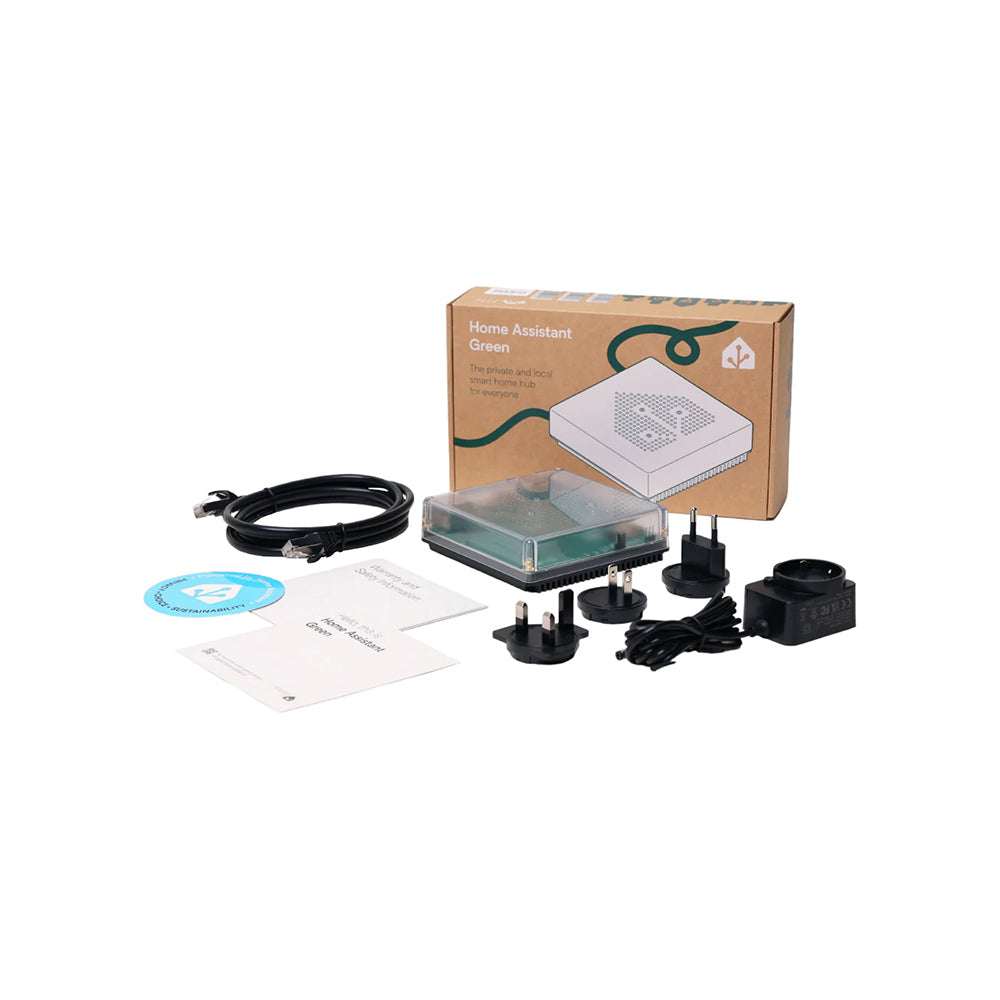

Green - Included in the Box

Home Assistant Green Smart Home Hub

1x Gigabit Ethernet cable

Universal power supply, 12 V DC, 1 A, with plug adapters for EU, USA, and UK

Quick Start Guide

Warranty and Safety Information

Green - Datasheets

Quickstart Guide DE/EN

Warranty & Safety Information

Datasheet

Declaration of Conformity

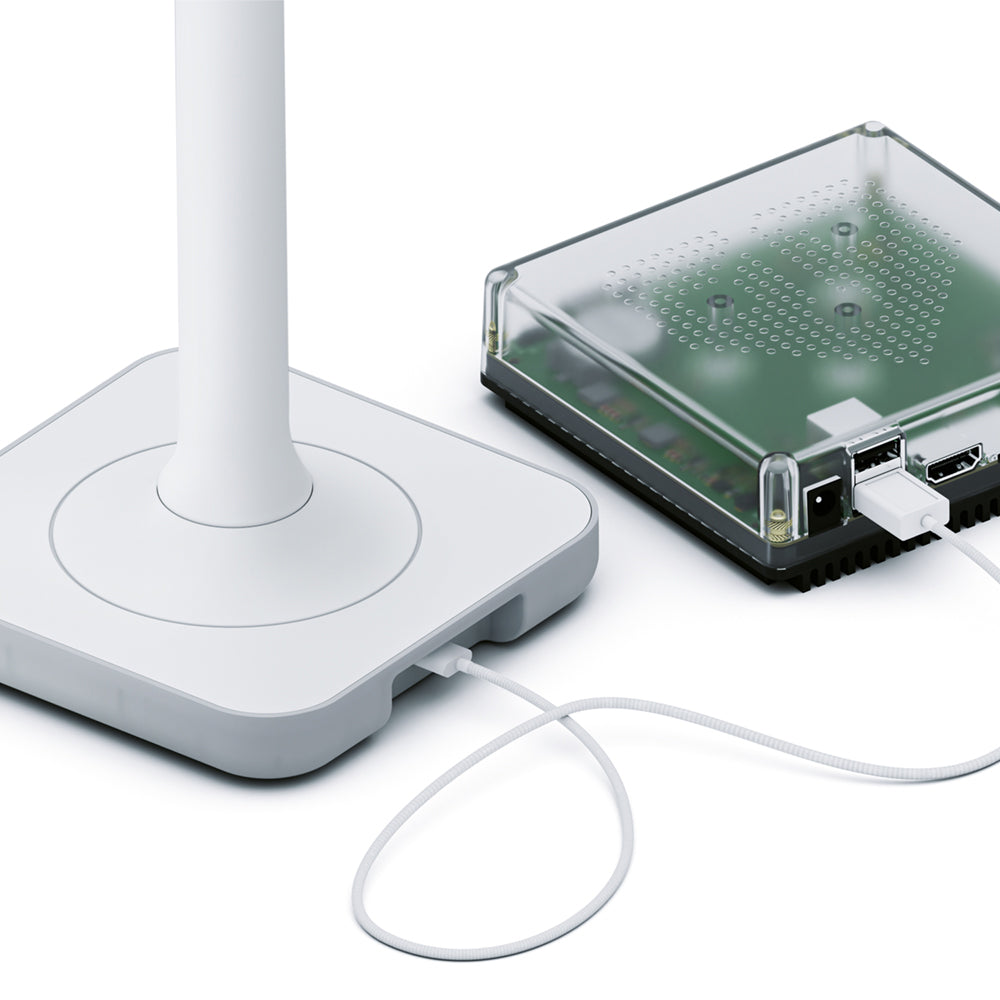

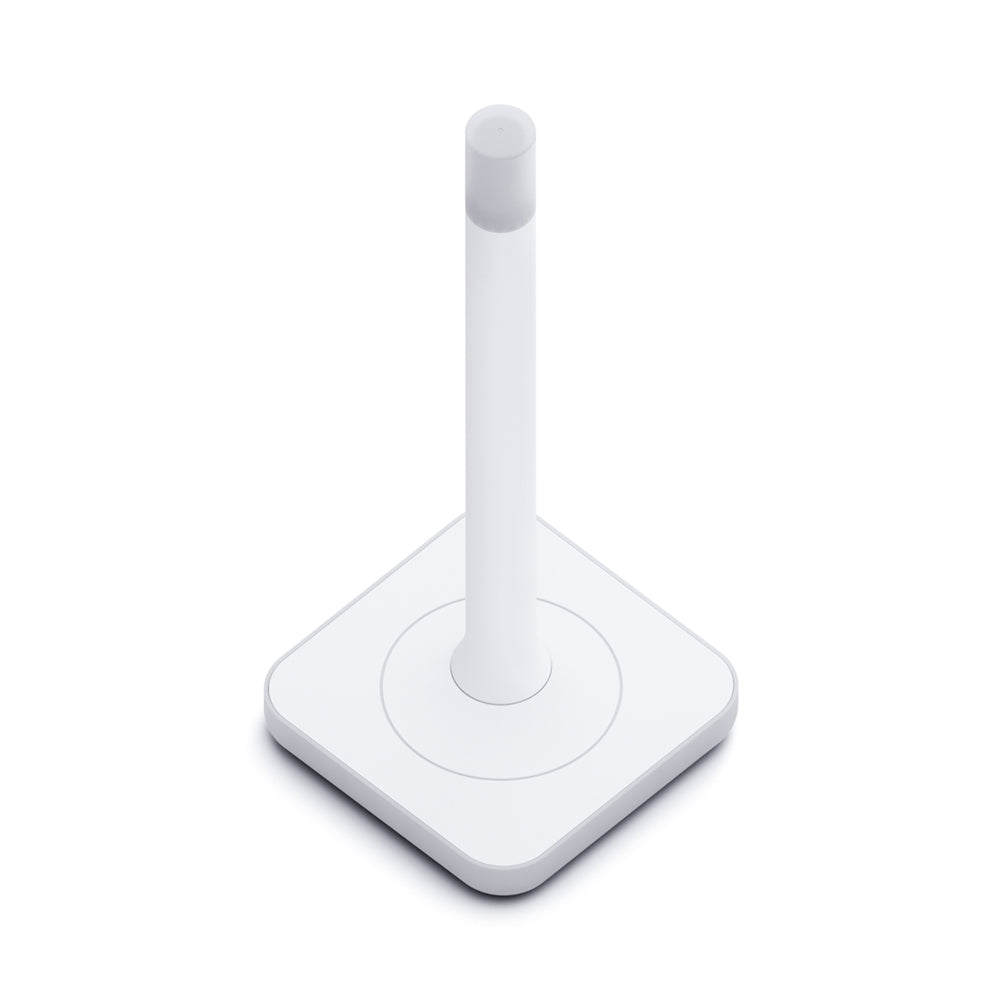

Connect ZWA-2 - The most powerful way to connect Z-Wave devices with Home Assistant

The Home Assistant Connect ZWA-2 is currently the most powerful Z-Wave adapter for Home Assistant. It has been designed from the ground up to ensure maximum range and reliability when connecting to Z-Wave devices – supported by the latest 800 series chipset.

Thanks to a specially tuned antenna designed specifically for the ideal Z-Wave wavelength, it offers a particularly stable connection and high range. Support for Z-Wave Long Range* (currently for EU and US) allows for even greater radio range while reducing power consumption.

The ZWA-2 was developed by the team behind Home Assistant and Z-Wave JS and integrates seamlessly into your existing smart home system. Setup is quick and straightforward – including an intuitive setup assistant and automatic firmware updates.

Note: The Connect ZWA-2 was designed for use with Home Assistant and the Z-Wave JS add-on. If you want to use it without Home Assistant, please visit https://go.nabucasa.com/zwa-2-without-home-assistant. Note on Z-Wave Long Range: Z-Wave Long Range is currently only supported in the EU and US regions. The availability of compatible devices in Europe is currently limited but is continuously expanding.

Connect ZWA-2 - Key Features

Optimized for Home Assistant – Developed by the Home Assistant and Z-Wave JS team for maximum compatibility and integration.

Latest Z-Wave chipset – Equipped with the latest Z-Wave 800 series chip for top performance and full compatibility.

Long-range capable – Supports Z-Wave Long Range* for particularly large ranges and better energy efficiency.

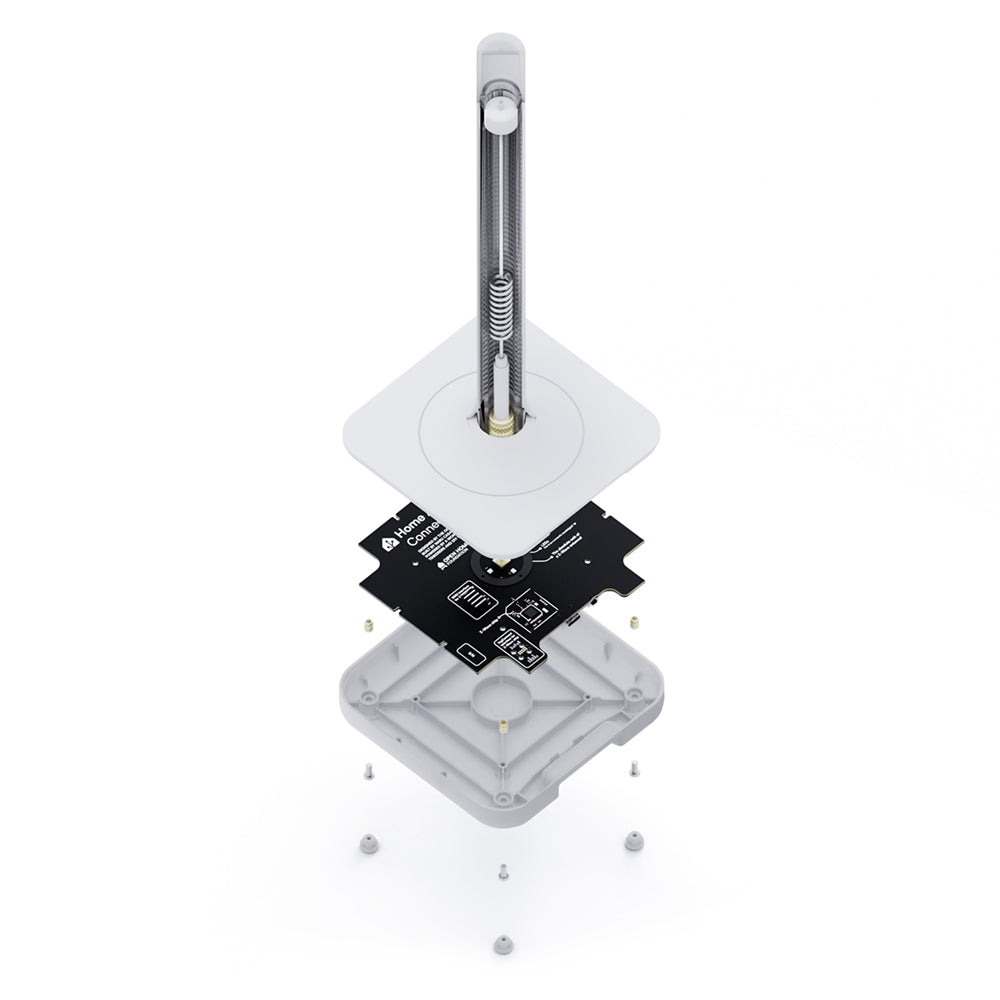

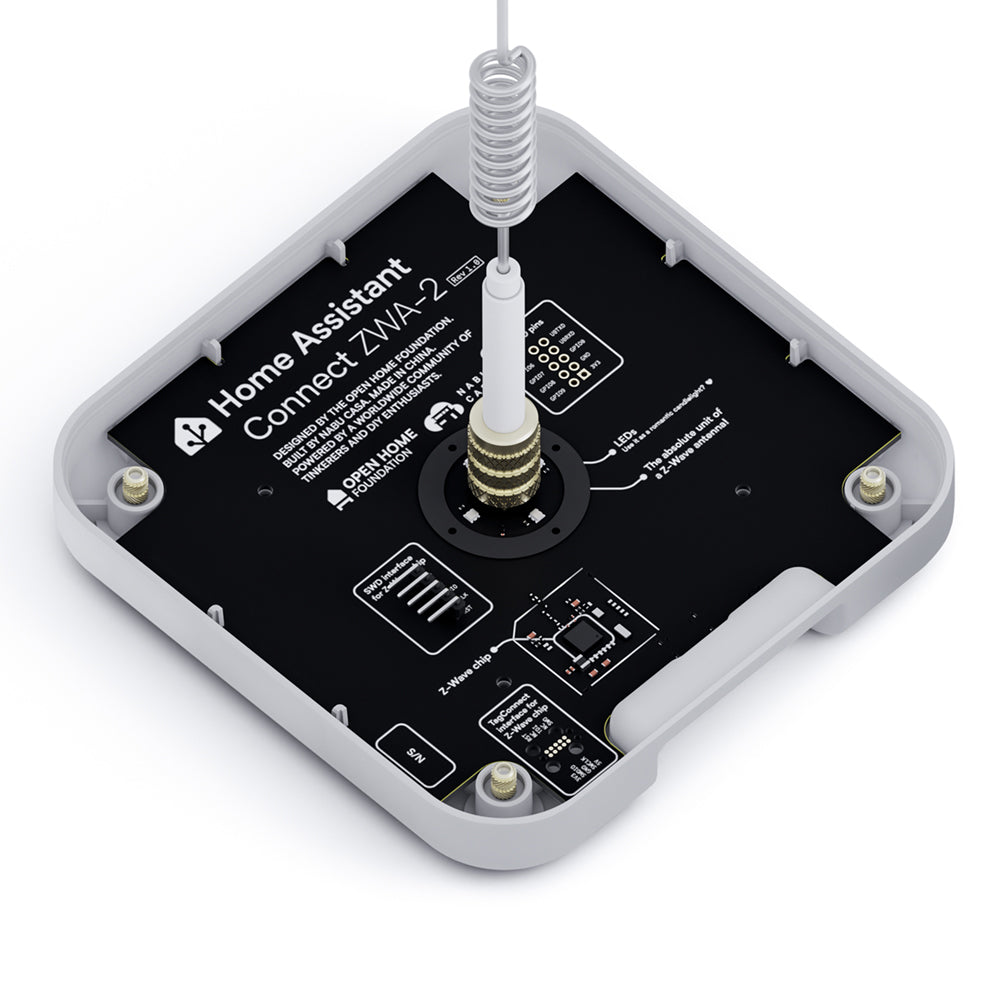

Precision-tuned antenna – The antenna and housing are precisely tuned to the ideal Z-Wave frequency – for interference-free communication, even through thick walls.

Plug & Play – Easy installation through the setup assistant in Home Assistant – including one-click firmware updates.

Easy transition – Migration from other Z-Wave adapters takes just a few clicks.

More range, more possibilities – e.g., for mailbox sensors in multi-family homes or smart driveway gates at the end of long driveways.

2nd generation of the Connect platform – Based on the new Home Assistant Connect platform for high openness and performance.

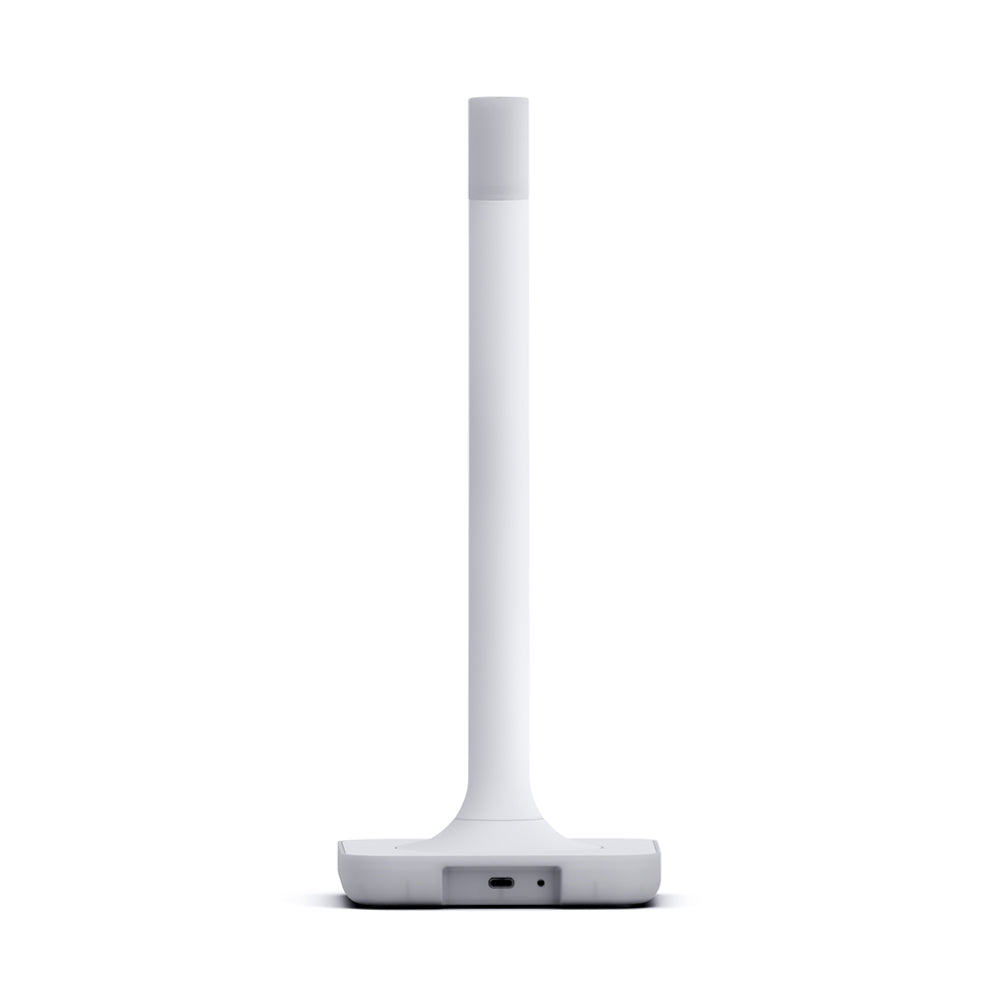

Designed for home – Discreet, modern design with LED lighting in the style of a candle. Fits visually into any living environment.

Connect ZWA-2 - Technical Specifications

Model: NC-ZWA-9734

Z-Wave chip: Silicon Labs ZG23 (Z-Wave 800 series)

USB bridge: ESP32-S3

Protocols: Z-Wave, Z-Wave Long Range*

Certifications: CE, FCC, RCM

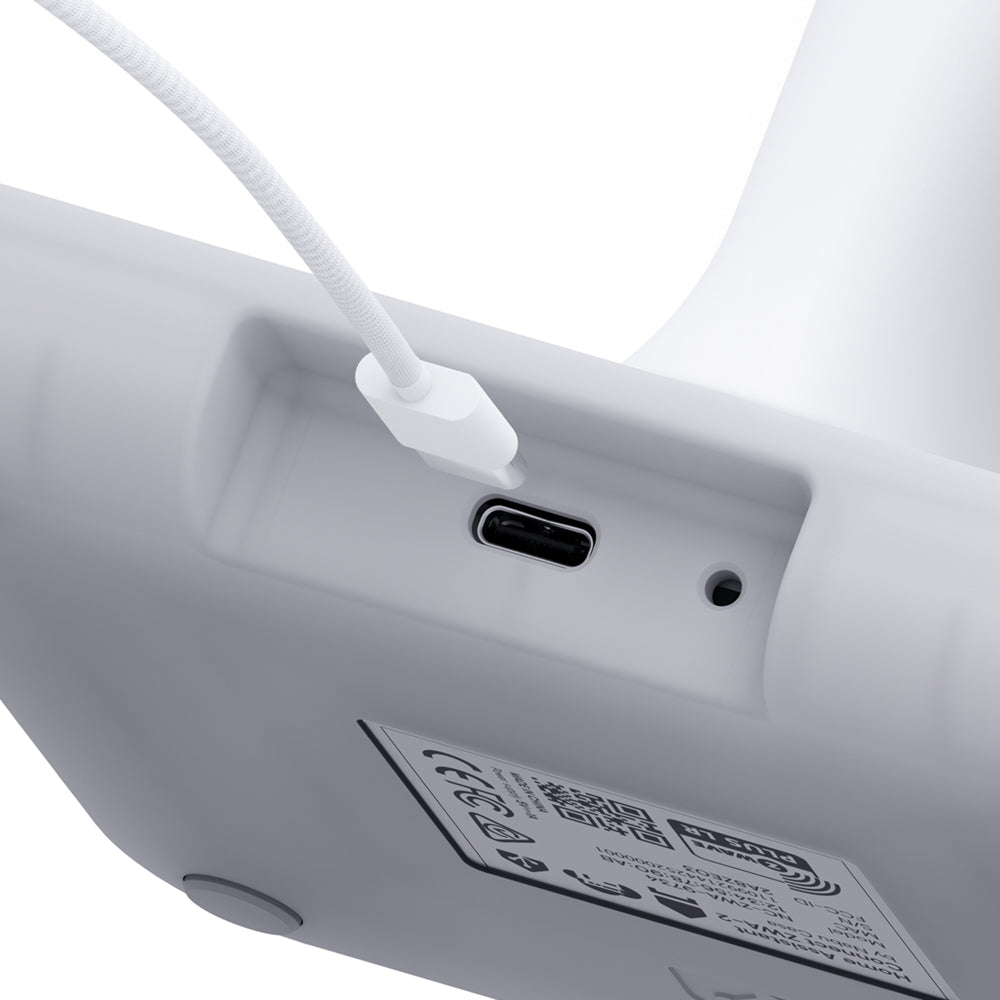

Voltage: USB-C, 5 V DC, 1 A

Frequencies (by region):

EU: 868.4 / 869.85 MHz (mesh), 864.0 / 866.0 MHz (Long Range)

US: 908.42 / 916 MHz (mesh), 912 / 920 MHz (Long Range)

AU: 919.8 / 921.4 MHz

Antenna: Omnidirectional, peak gain: 3.38 dBi

Dimensions: 125 x 125 x 315 mm, 350 g

Packaging: 345 x 222 x 45 mm, 600 g

Material: Injection-molded polycarbonate, colours: white and semi-transparent

Operating conditions:

Indoor use only:

Temperature: 0 °C to 65 °C

Humidity: Non-condensing

: Protect from direct sunlight and heat sources
